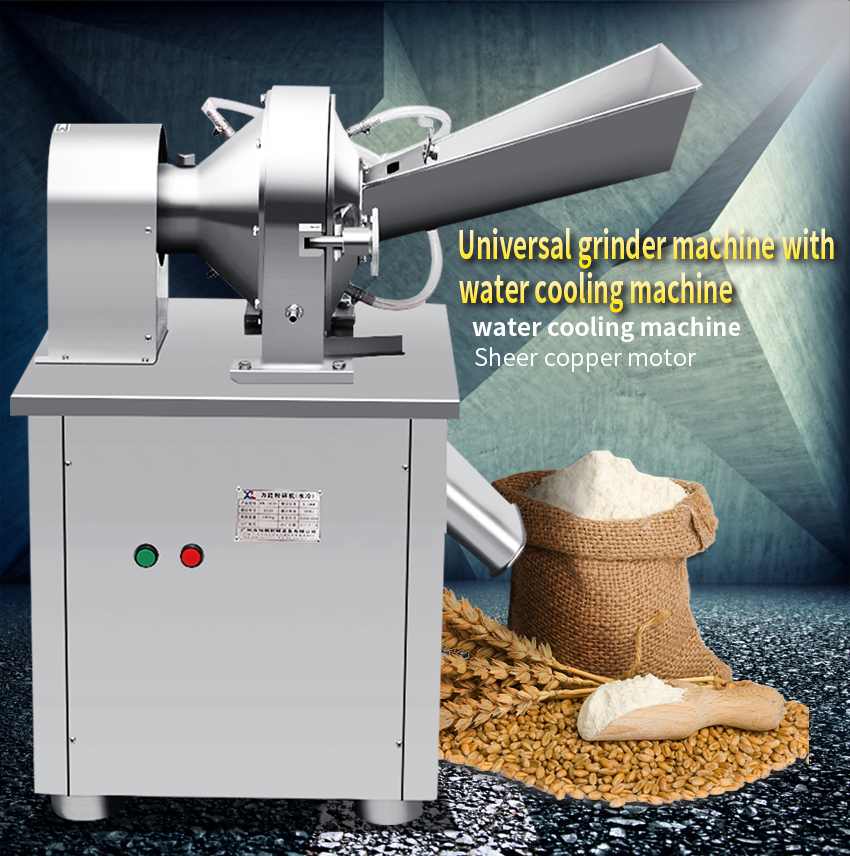

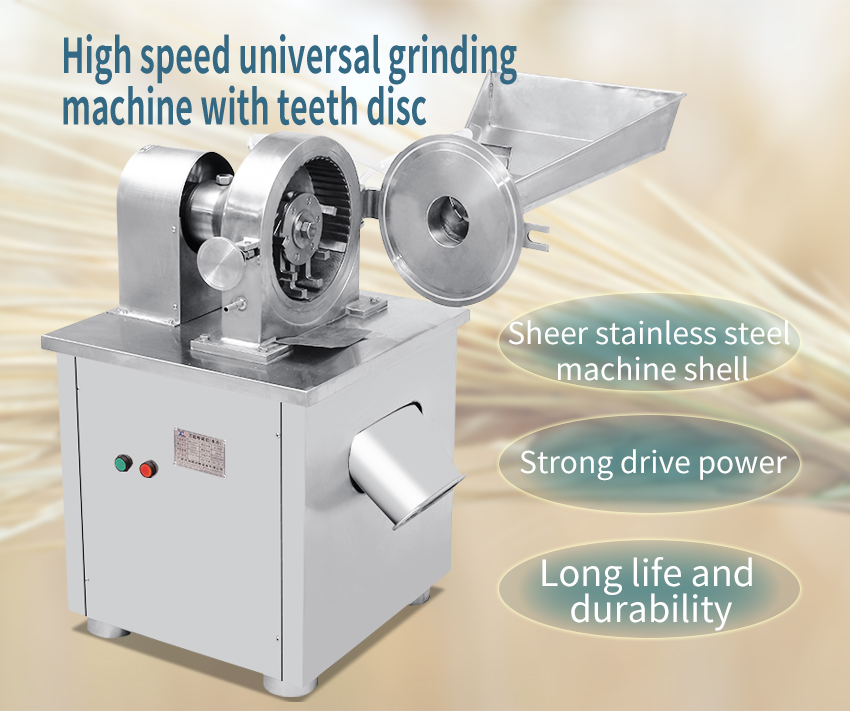

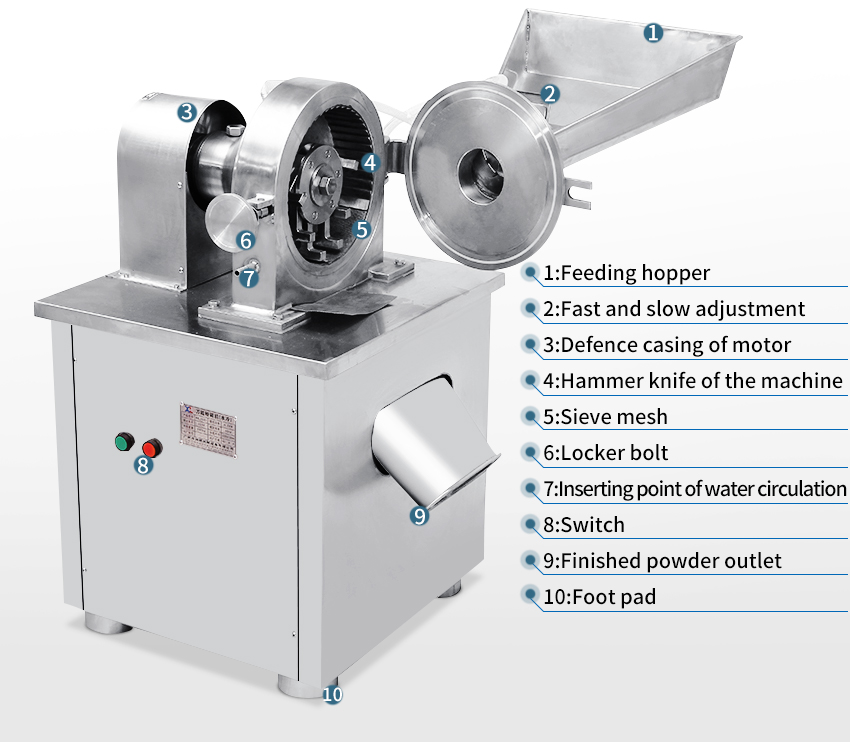

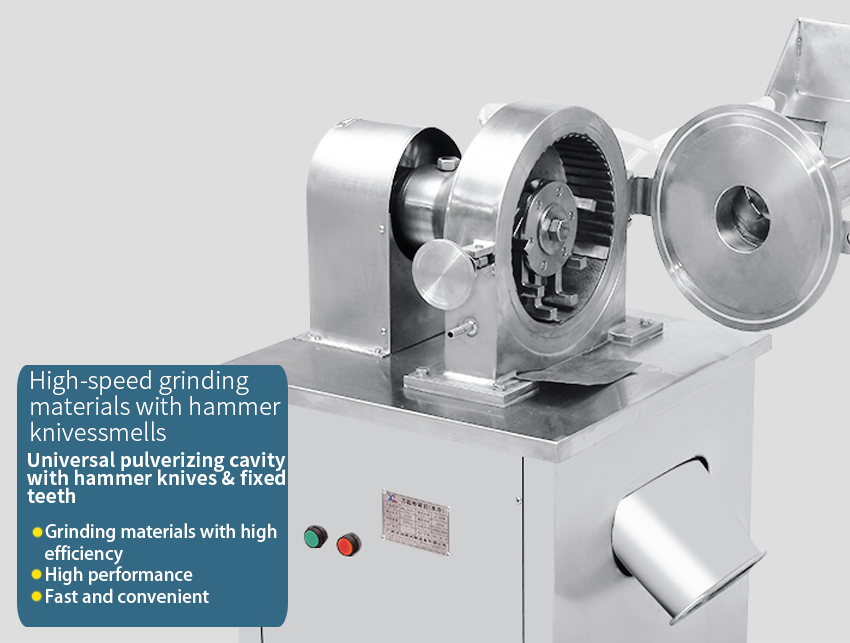

Universal grinder machine with water cooling system makes use of teeth and grinding blades to pulverize the feeding materials in the grinding cavity through high-speed collision,striking,cutting and friction,and also mutual collision and friction of feeding materials.So that the materials can be completely pulverized and the finished powder will pass the sieve mesh below grinding chamber into the collecting bucket or cloth bag.Generally,the cloth bag can effectively collect finished powder,the air in the bag and less powder dust will be discharged outside through the tiny hole on the bag.The water cooling device is designed outside the grinding cavity,on the door casing of pulverizing chamber and in the posterior wall of grinding cavity.When cooling water is poured into the human-designed airtight empty cavity,it flows through the grinding chamber,the front cover of cavity,rear cavity of grinding chamber by orders and discharges outside in the end.Due to this kind of scientific and reasonable design,it can freeze the whole grinding cavity and effectively reduce the temperature of grinding cavity.

機(jī)器特點(diǎn)：（ Features: ）

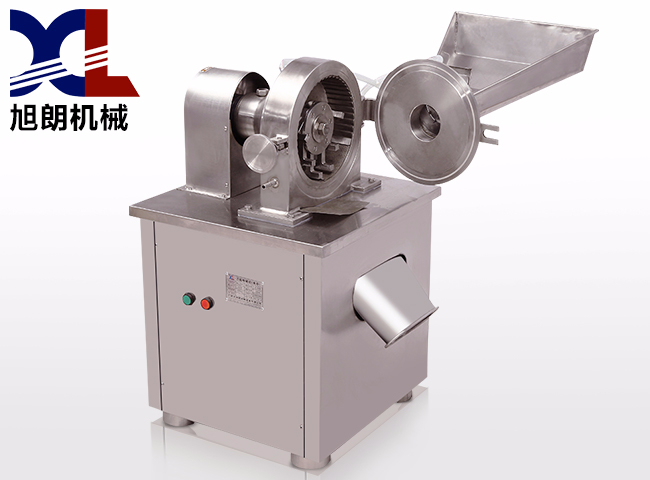

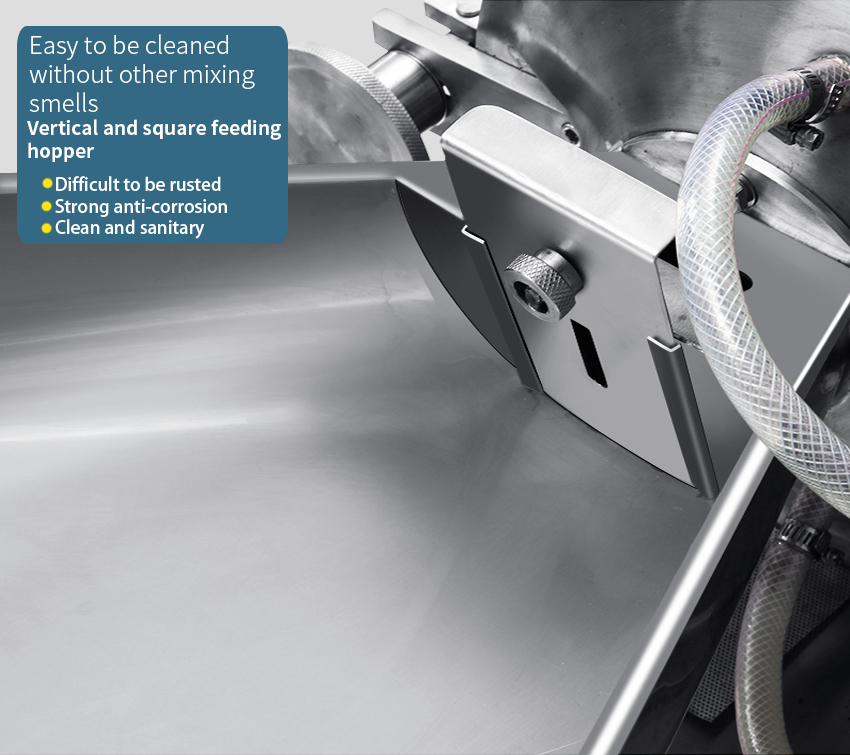

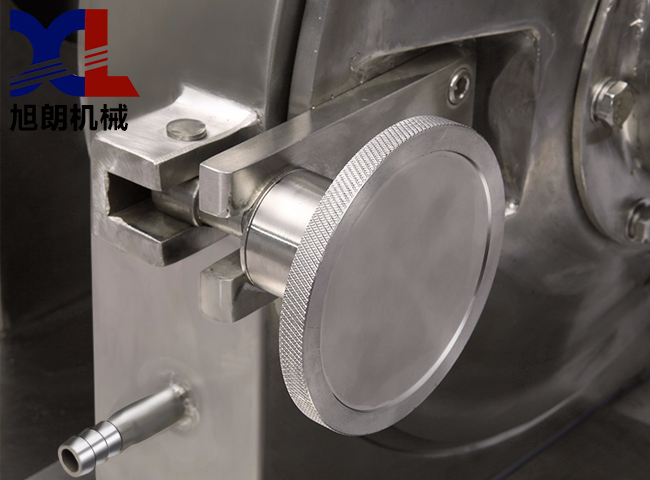

1.The machine structure is simple,grinding cavity is convenient to be installed and dismantled,easy to be cleaned.

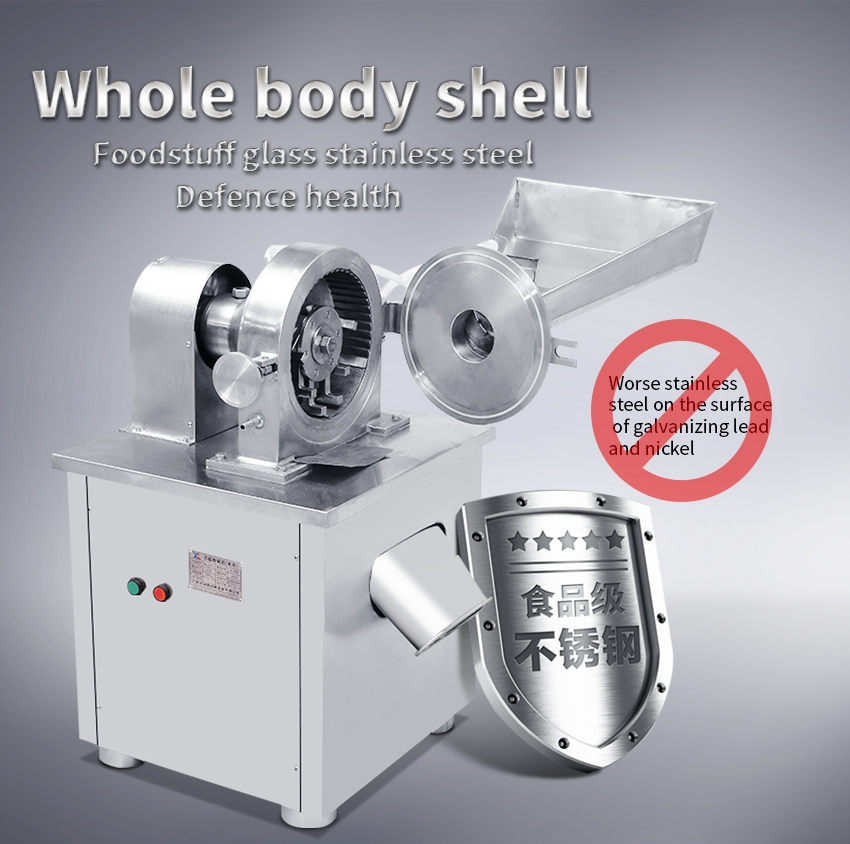

2.The machine is totally made of stainless steel and meets the requirements of GMP.

3.Smooth operation, low noise, small vibration.

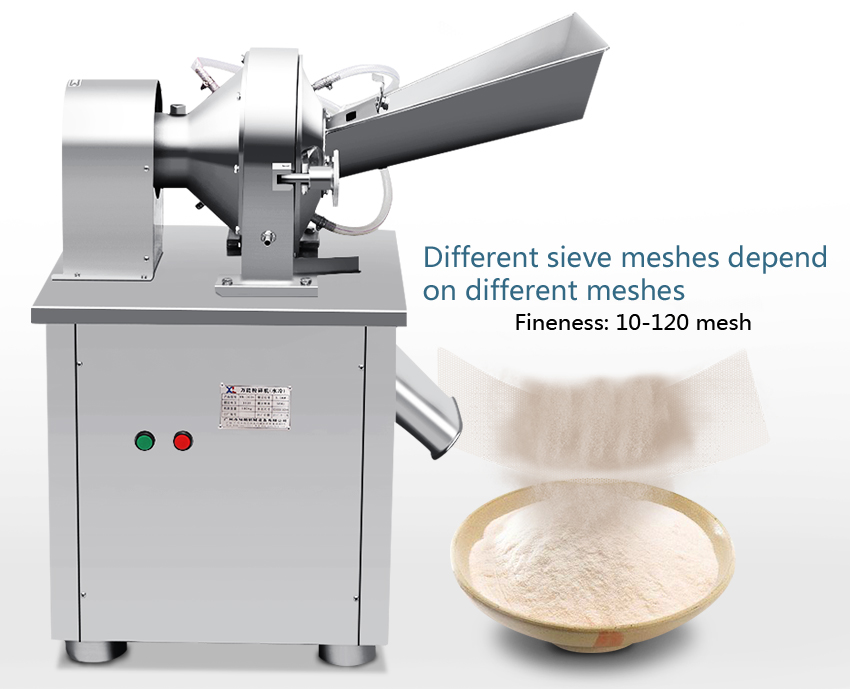

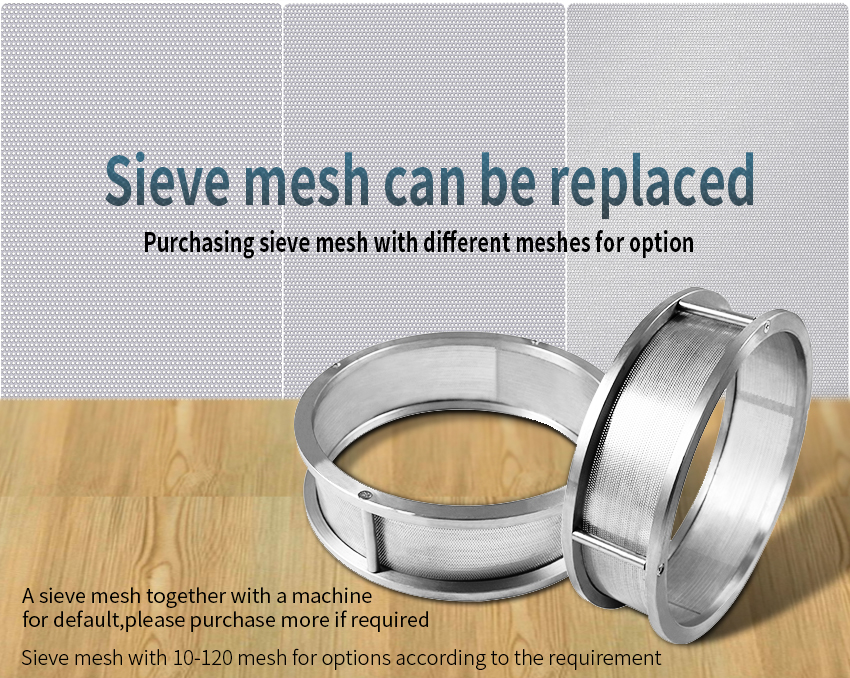

4.The operation is simple.Replacing the sieve mesh can control fineness of finished powder.

5.Due to installing the water cooling system,the square meter of sieve mesh is getting smaller than one of ordinary grinder machine with teeth disc,it only occupies approx 40%.Therefore,the yield is getting fewer than one of ordinary grinder machine with teeth disc.Please customers pay attention to this point.

6.Lower the water temperature is getting in water cooling system , better the cooling effect is. Water used for cooling can not be circulated in use to avoid influencing the freezing effect. In summer water from the well is better than running water in cooling effect.Certainly,water adding iceberg is best in cooling effect.

7. The water-flow speed of flowing into the cooling device remains small and slow.The water entering into the cooling system should keep in low water pressure.
